ERD, Data Dictionary, Site Map
HINT: If you have trouble with connecting your site to the
database try this DSN
instead:
Provider=SQLOLEDB;Data Source=130.86.76.106;Initial Catalog=Shop;User ID=class;Password=class;

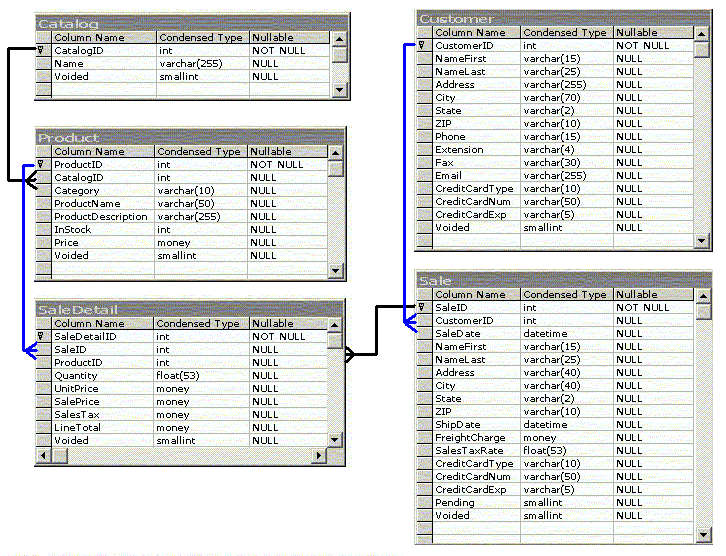

Revised ERD
[Top]
Data Dictionary
| FieldName | Tables | Note |
|---|---|---|
| Address | Customer,Sale, | Sic. |
| CatalogID | Catalog,Product, | PK of Catalog. Catalog number that matches the class # |
| Category | Product, | User defined (optional) Product Type |
| City | Customer,Sale, | Sic. |
| CreditCardExp | Customer,Sale, | When does credit card expire (mm/yyyy) |
| CreditCardNum | Customer,Sale, | Credit Card `Number` (actually a string) |
| CreditCardType | Customer,Sale, | Use a dropdown (Visa, MC, AMEX, DISC) |
| CustomerID | Customer,Sale, | PK of customer table. Stored in the cookie |
| Customer, | Sic.Used to login to Shop. Must contain an @ and a . | |
| Extension | Customer, | Phone Extension (if any) not required. |
| Fax | Customer, | Fax number is optional |
| FreightCharge | Sale, | Total Shipping and Handling Charged |
| InStock | Product, | Quantity of the item in stock +Number mean you have some, - numbers indicate the item is on back order or unavailable |
| LineTotal | SaleDetail, | Quantity * Price + Sales Tax |
| Name | Catalog, | Of your site or catalog |
| NameFirst | Customer,Sale, | Sic |
| NameLast | Customer,Sale, | Sic. |
| Pending | Sale, | 0=Order has been shipped, -1 = this is the shopping cart. Each customer should only have 1 pending order. |
| Phone | Customer, | Sic. |
| Price | Product, | In US Dollars |
| ProductDescription | Product, | Sic |
| ProductID | Product,SaleDetail, | PK of product table |
| ProductName | Product, | Sic. |
| Quantity | SaleDetail, | Amount of item customer ordered |
| SaleDate | Sale, | Date of Sale (today) |
| SaleDetailID | SaleDetail, | PK of SaleDetail Table, uniquely identifies a line item |
| SaleID | Sale,SaleDetail, | PK of Sale Table = Order # = Shopping Cart # |
| SalePrice | SaleDetail, | (Unused except for extra credit) Used to show discounted price |
| SalesTax | SaleDetail, | Total for this line |
| SalesTaxRate | Sale, | Rate of sales tax (Default: 8%) |
| ShipDate | Sale, | Date order is shipped, some number of days after SaleDate |
| State | Customer,Sale, | Sic |
| UnitPrice | SaleDetail, | Cost/Each = Product.Price |
| Voided | Catalog,Customer,Product,Sale,SaleDetail, | (Unused) (Normally for deleted records) |
| ZIP | Customer,Sale, | Sic |
[Top]
Shop Site Map/Page Inventory
These are the required pages
| Page Name | Minimum Navigation | Lab Assigned | ||
| Checkout.Asp | From main navigation menu | 13 | ||
| Customer.Asp | From main navigation menu, Login.asp | 10 | ||
| Default.Asp | From main navigation menu | 8 | ||
| Engine.Asp | From Product, Orders, Checkout | 12 | ||
| Error.Asp | (Various) | (optional) | ||
| Help.Asp | From main navigation menu | 13 | ||
| Login.Asp | From main navigation menu, From inside ValidateUser() function, Customer, Default | 11 | ||
| Orders.Asp | From main navigation menu | 12 | ||
| Product.Asp | Search, (optionally other places) | 8, 12 | ||
| Search.Asp | From main navigation menu, (optionally other places) | 9 | ||
| includes/header.[asp|htm] | N/A Used in all pages | 8 | ||
| includes/footer.[asp|htm] | N/A Used in all pages | 8 | ||
| includes/{your code library goes here}.[asp|htm] | N/A Used in all pages | (all) |
Map

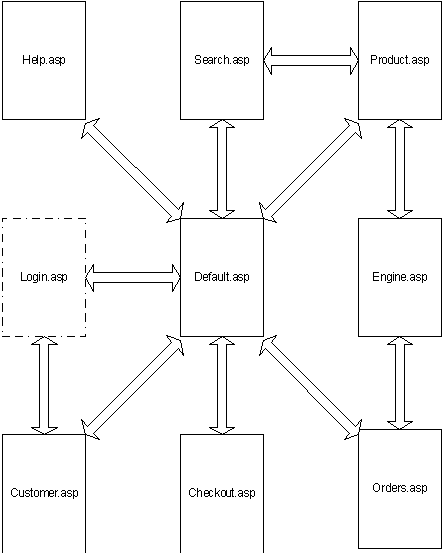

This map show the major call paths between pages.
[Top]
